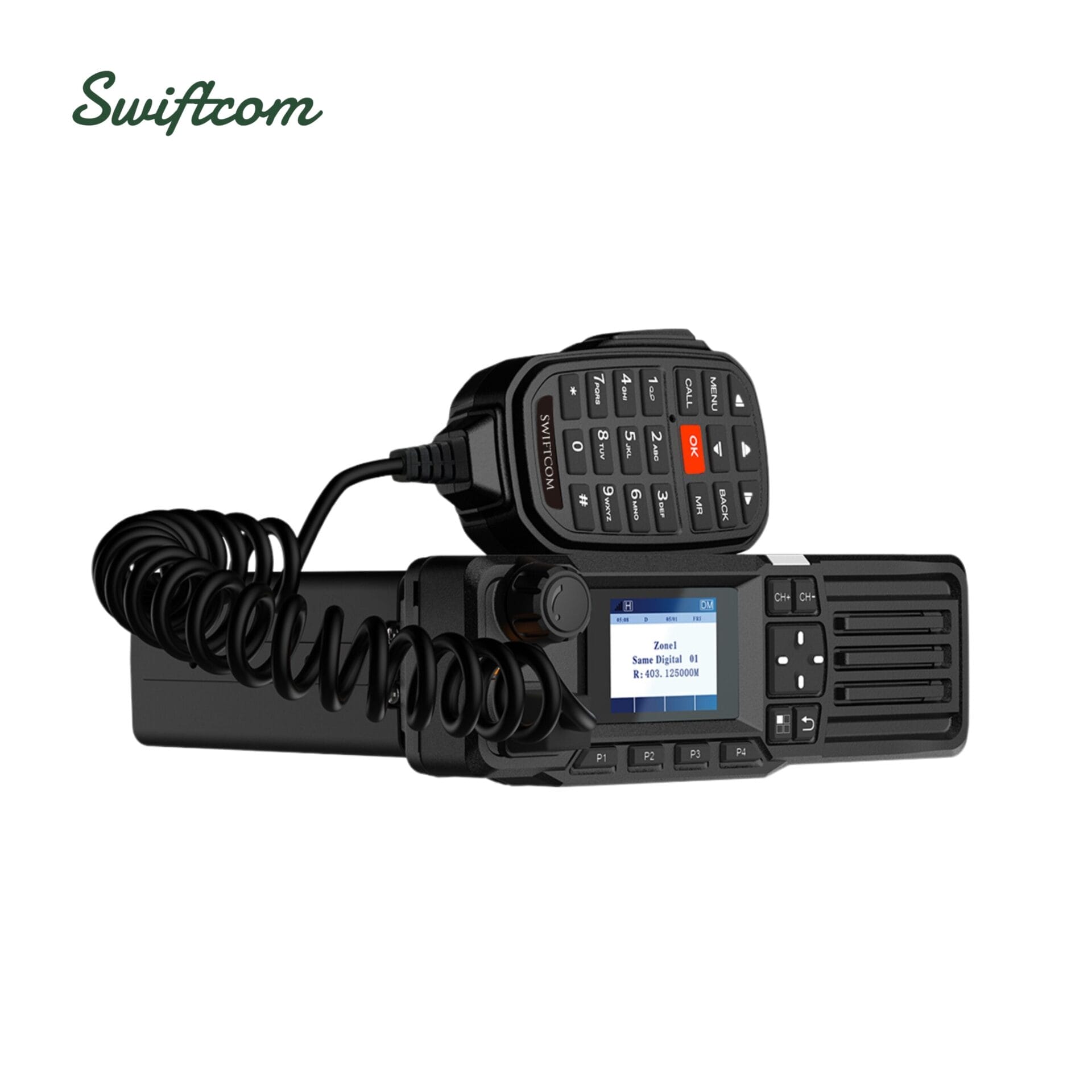

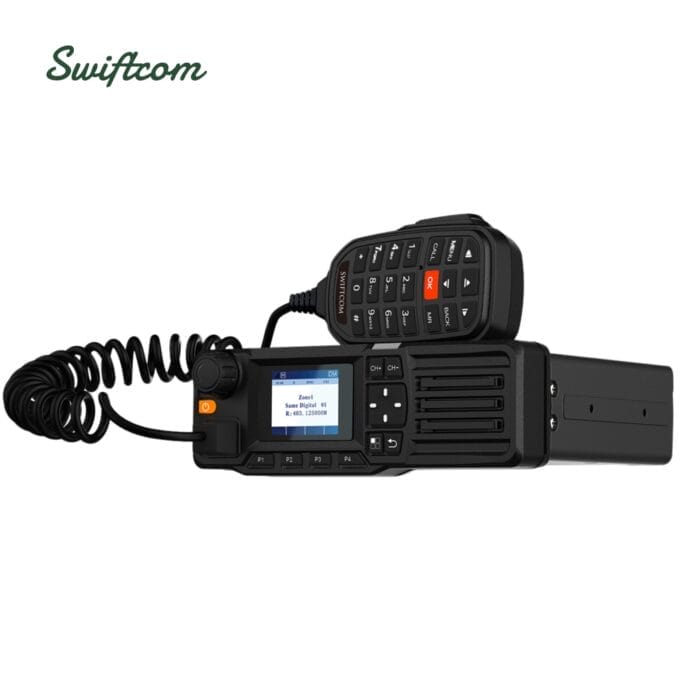

SWIFTCOM SC M3600 DMR / NXDN Digital Trunking Mobile Radio

Features:

• Dual-mode Digital/Analog Compatible

• DMR Tier II (Tier III available upon request)

• SFR (Single Frequency Repeater)

• Supports NXDN/DMR

• Emergency Alarm (Private/Group/All Call)

• DMO 2 Slots

• Bluetooth (Optional)

• Beidou/GPS/GLONASS Positioning (Optional)

• AES-256 Encryption

• 1.77″ Color Display

• One Touch for Data/Voice Messages

• Radio Detection

• Remote Kill/Revive

Specifications:

Transmitter

• RF Power: 10W (Low) / <25W (High)

• Frequency Error: ±1.0 ppm

• FSK Error: <2%

• 4FSK Modulation

• FM Modulation: 8K50F3E @ 12.5kHz / 16K0F3E @ 25kHz

• 4FSK Digital Modulation: 12.5kHz (data only): 7K60FXD, (data+voice): 7K60FXE

• Audio Distortion: 3% @ 40% Deviation

• Conducted Spurious Emission: <-57 dBm (9kHz1GHz), <-47 dBm (1GHz12.75GHz)

Receiver

• Analog Sensitivity: 0.18µV (12dB SINAD)

• Digital Sensitivity: 0.20µV (BER 5%)

• Adjacent Channel Selectivity: 60dB @ 12.5kHz / 70dB @ 25kHz

• Intermodulation: 65dB

• Blocking: 90dB

• Co-channel Rejection: -12dB @ 12.5kHz / -8dB @ 25kHz

• Spurious Response: 70dB

• Audio Response: +1/-3 dB

• FM Hum and Noise: 40dB @ 12.5kHz / 45dB @ 25kHz

• Spurious Emission: < -36 dBm (9kHz–1GHz), < -30 dBm (1GHz–12.75GHz)

General

• Frequency Range: VHF/UHF (exact range unclear)

• Channel Spacing: 6.25kHz (NXDN) / 12.5kHz / 25kHz

• Channel/Zone Capacity: 2000 Channels / 64 Zones

• Operating Voltage: 13.6V ±15%

• Vocoder Type: AMBE+2™ / NVOC

• Frequency Stability: ±1.0ppm

• Antenna Impedance: 50Ω

• Dimensions (W×H×D): 170mm x 170mm x 57mm

• Weight: 1.65kg

• Ingress Protection: IP68

Accessories:

• Microphone

• Bracket

• Power Cable

• Hanger + Screws

• Mounting Screws
